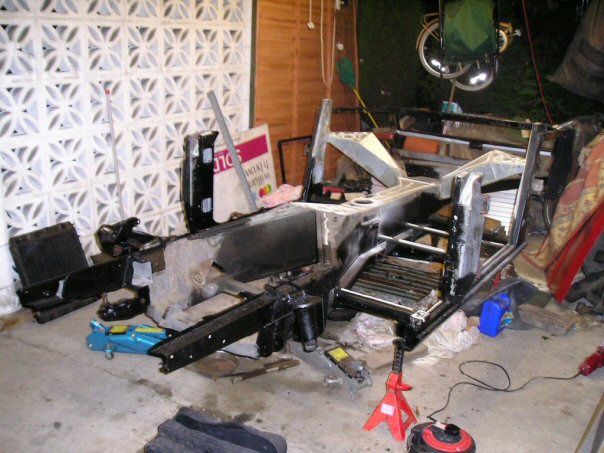

Fully stripped and rebuilt chassis
|
|
|

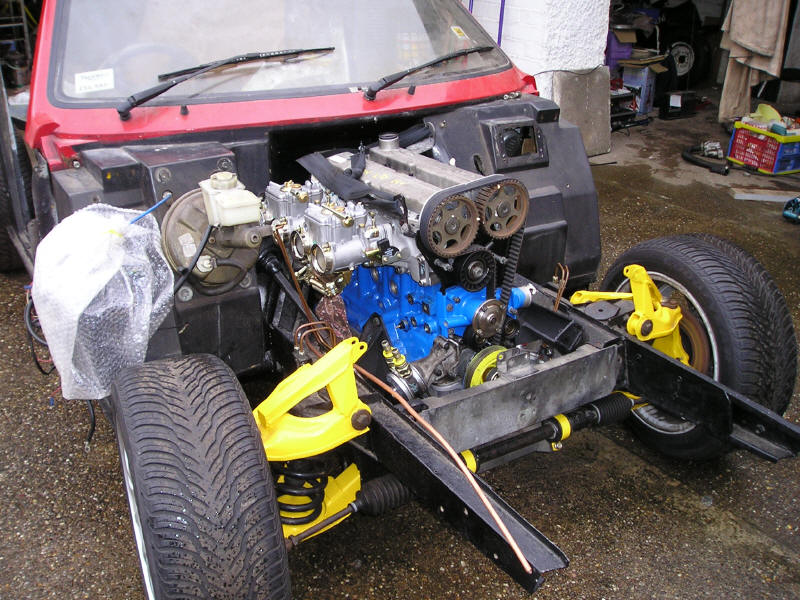

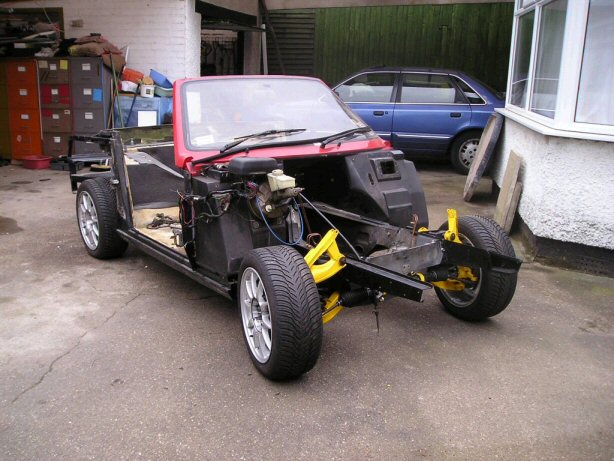

Rolling chassis, but missing something...
|
|
|
Carefully rebuild a 2.0 Zetec..
|
|
|

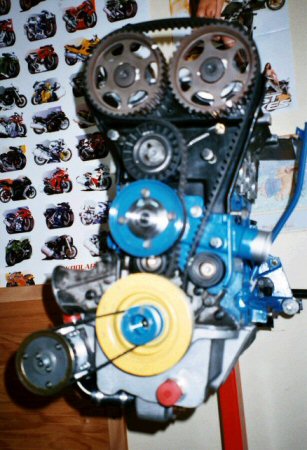

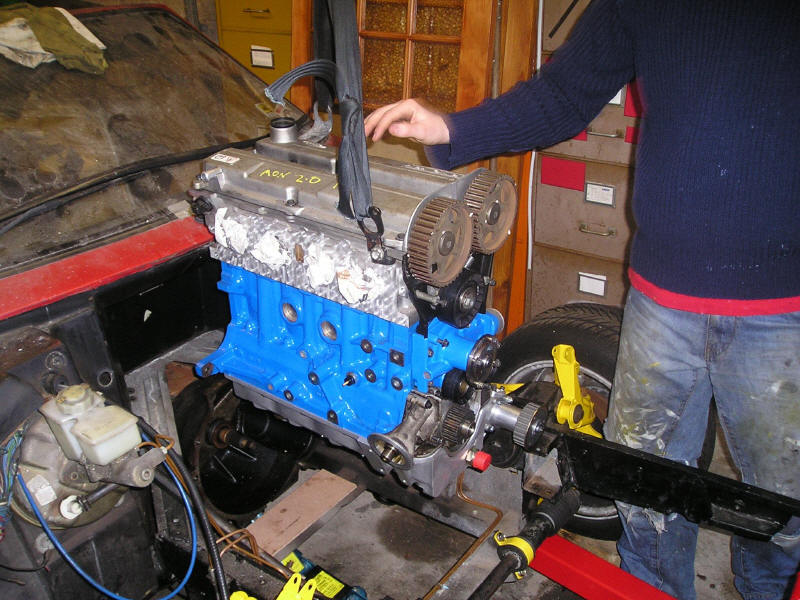

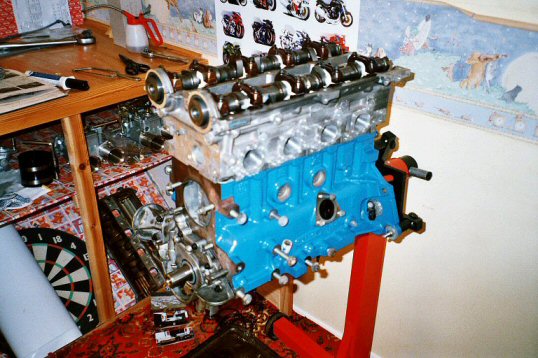

Fully built engine
|
|
|
|
|
|

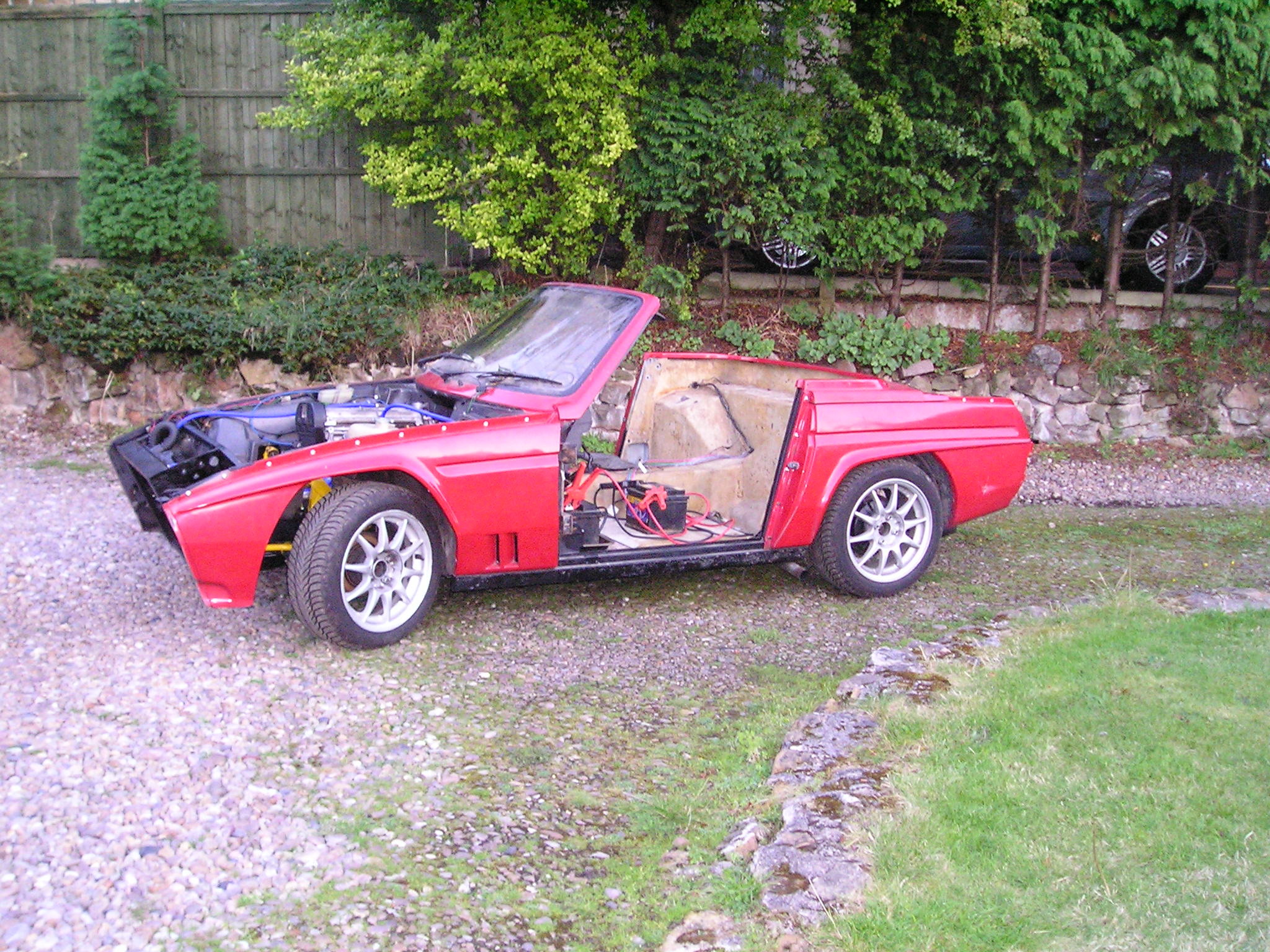

At least it drives!
Gets a bit windy at 70mph, though... |
|
|
|
2.0ltr 1993 Ford Zetec (Zeta) engine |
|
Head flowed, ported, balanced & smoothed chambers by Andy West at CHD |
|
Kent FZ2001 cams |
|
Kent high performance hydraulic tappets |
|
Competition valve guides |
|
Heavy duty mains bearings |
|
Heavy duty big end bearings |
|
ARP
high tensile conrod bolts |
|
Competition piston rings |
|
Dynamically balanced crank assembly by Wilcox engines |
|
Balance conrod/piston assemblies by Wilcox engines |
|
Lightweight Zetec flywheel (1.6 zetec) |
|
Twin 45 DCOE 152s |
|
3D
mappable Alpha ECU |
|
16mm length induction trumpets |
|
Pipercross air filters |
|
Twin return spring throttle linkage |
|
Custom engine mounts |
|
1.8ltr Zetec ally sump pan + pick up |
|
1.8ltr Zetec dipstick tube, top mounting tube/bolt and dipstick |
|
Custom stainless steel water pipe (thermostat housing to top hose) |
|
Custom Stainless steel water pipe (rad bottom hose to water pump with take
of for header tank and take off for thermostat bypass) |
|
Samco silicone reduction hose (water pump to custom pipe 32mm) |
|
19.1mm rubber hose (thermostat bypass to custom water pipe) |
|
1.8ltr escort Zetec water pump |
|
Rover 400/600 cooling fan mounted using custom bracket |
|
Spare thermostat housing outlet blocked using copper pipe stop ends |
|
Mocal Remote oil filter |
|
Mocal sandwich plate to allow take off for remote filler |
|
Oil
pipe and fittings for remote filter |
|
Silicone hose for rad to expansion tank |
|
Custom alternator bracket using old LH engine mount, upside down on RHS of
engine under inlet manifold |
|
Spigot bearing from CVH sierra |
|
Custom full length 3 bore, stainless steel exhaust system & tubular
4into1 manifold. Built on the car by Andy at Gran Fabrications. Routed
over the LH chassis rail, collector in the wheel arch & then routed under
the trailing arm. Straight through stainless silencer at the rear. |
|
Engine
rotated about crank axis to sit more upright for inlet clearance. |
|
|

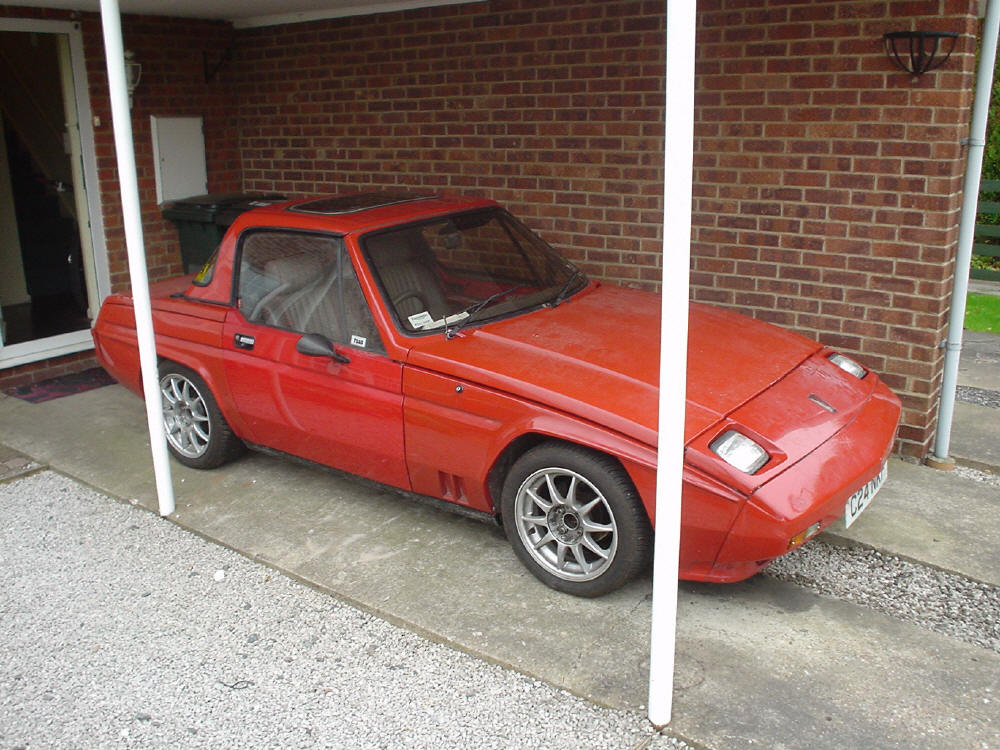

All finished, roof off...
|
|
|

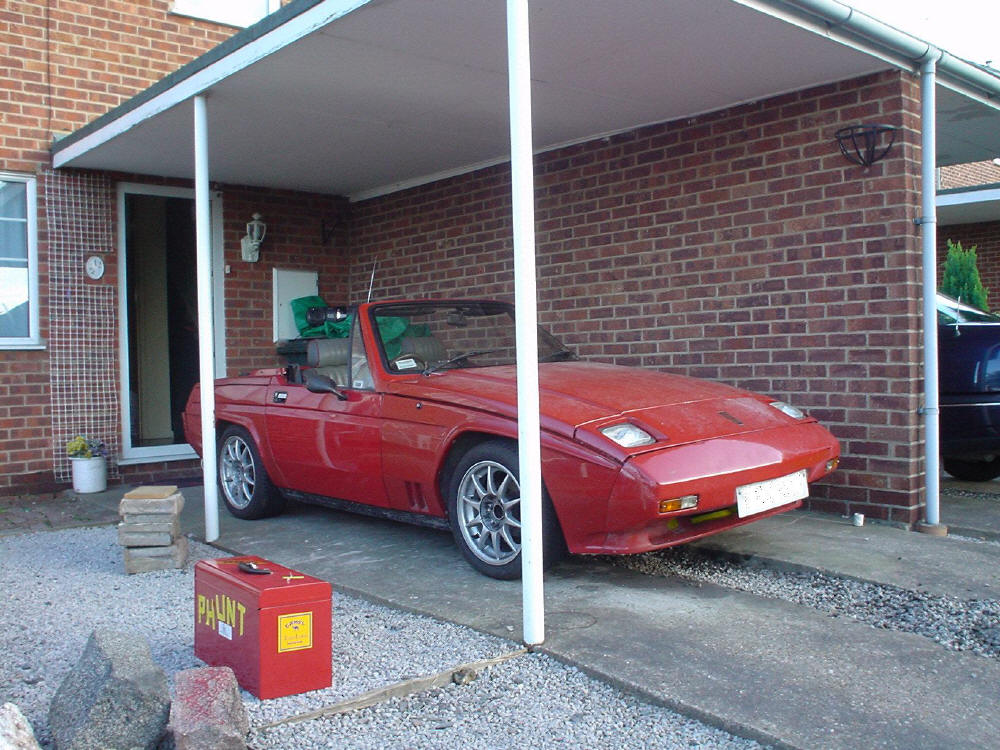

..or roof on, it still looks standard from the outside
|
|
|

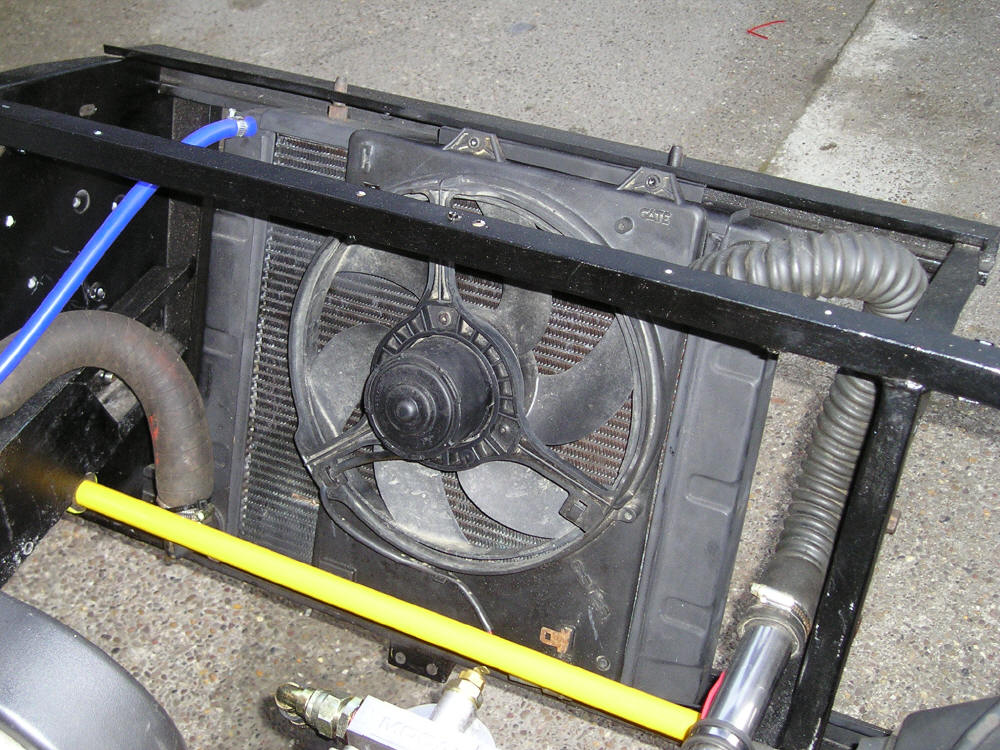

The aforementioned Rover Fan conversion
|
|
|

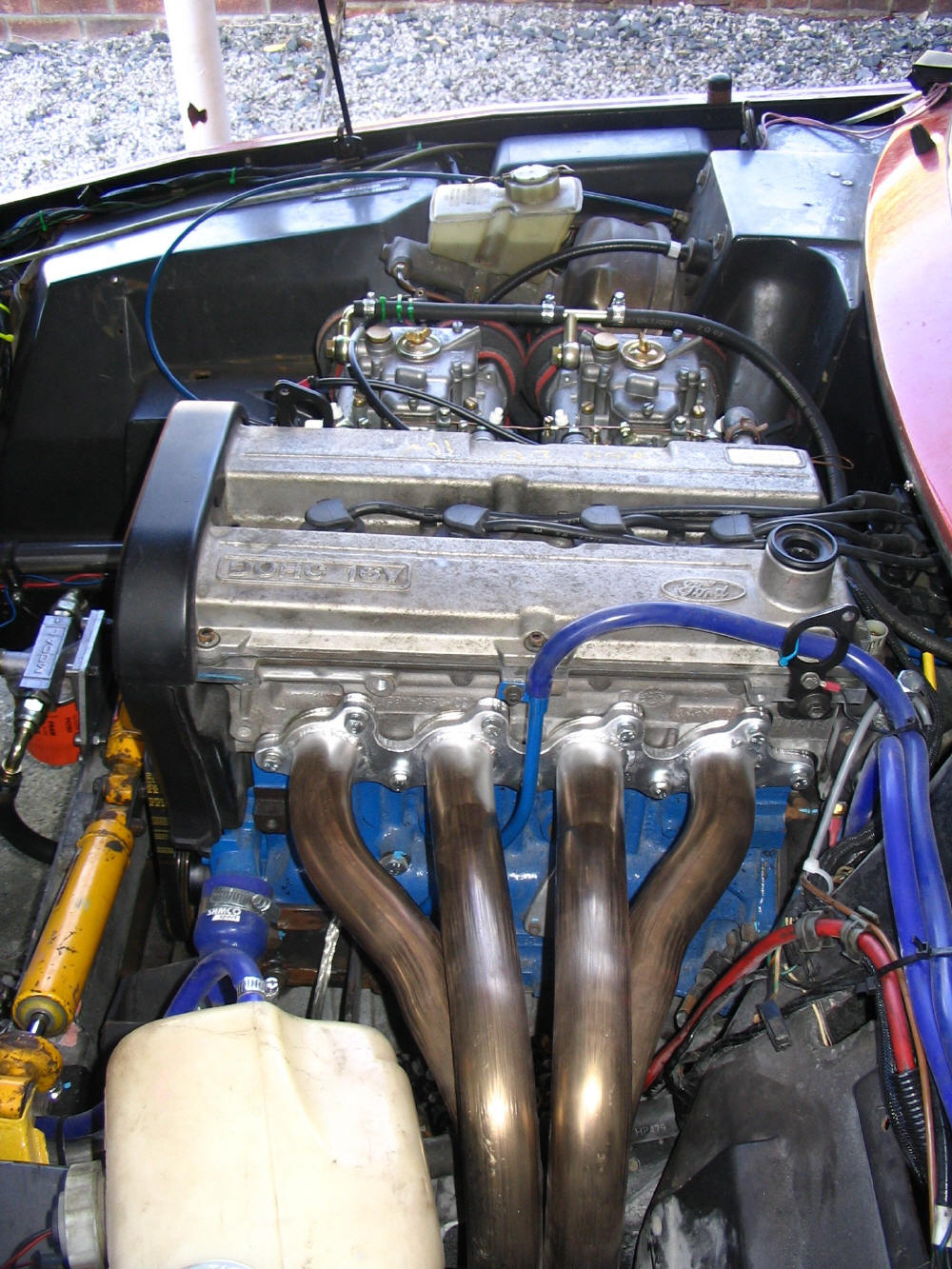

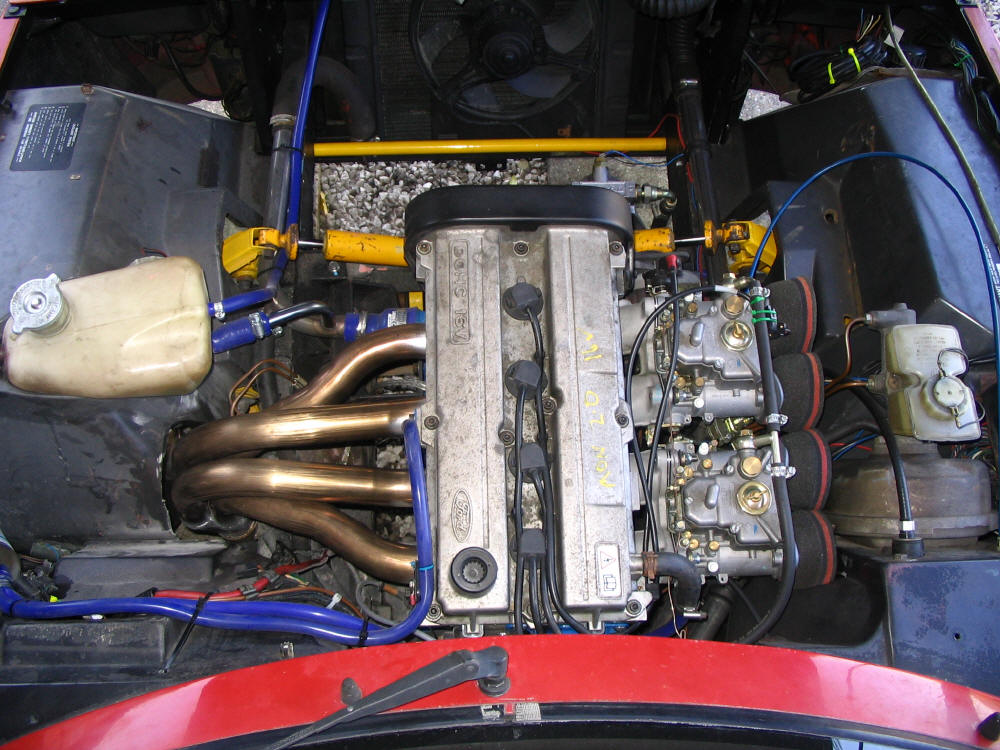

A very neat installation
|
|
|
...and that wonderful exhaust
|
|
|
|

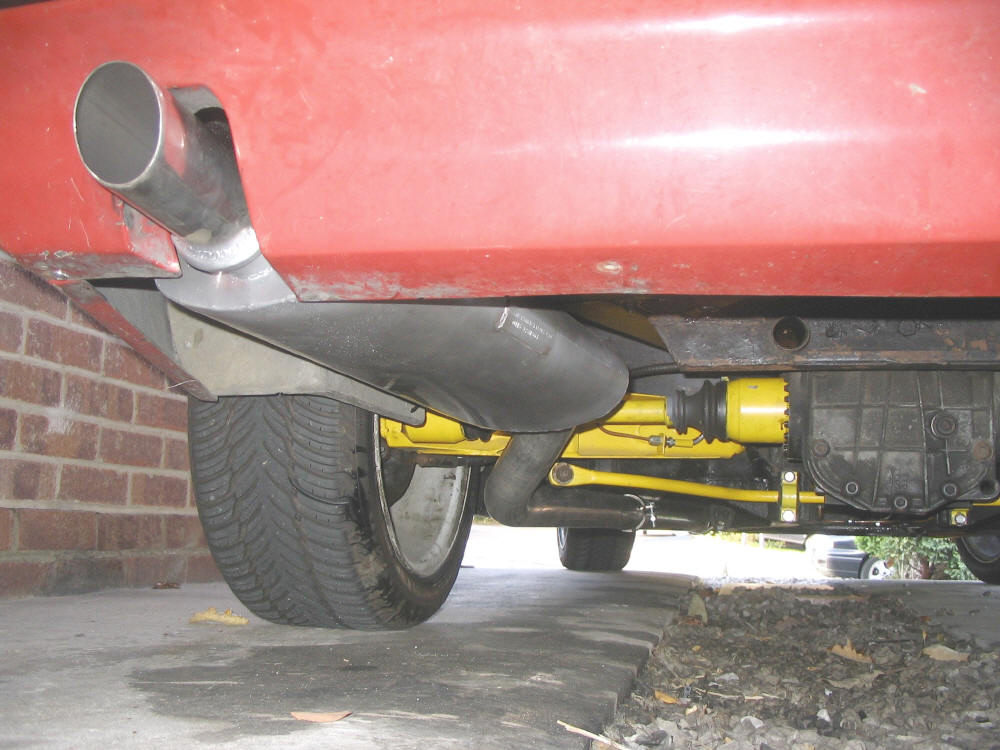

Note the alternative routing for the exhaust, not over the driveshaft as normal
|
|
|
